The USB program line can only be used to flash the program of the controller, and cannot flash the instrument, please kindly kow that
USB Drivers:
Windows 10 USB Driver:
https://drive.google.com/file/d/1rerH9mTJQfyJcuiB5atlN_aV99v8UBij/view
Windows 7/8/8.1 USB Driver:
https://drive.google.com/file/d/14JJ_HZJB2nisMVprWC7R7N3box2lAaTv/view
Windows XP/Server 2003/Vista USB Driver:
https://drive.google.com/file/d/1ylMb70vfWctFonILpQsWwjPzrEH6gmJ-/view

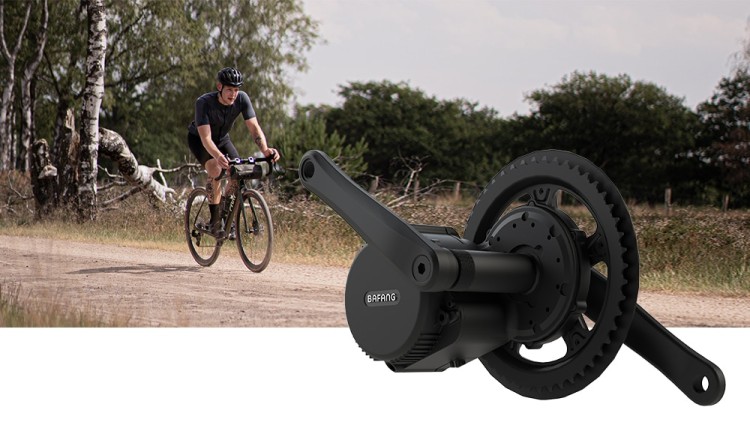

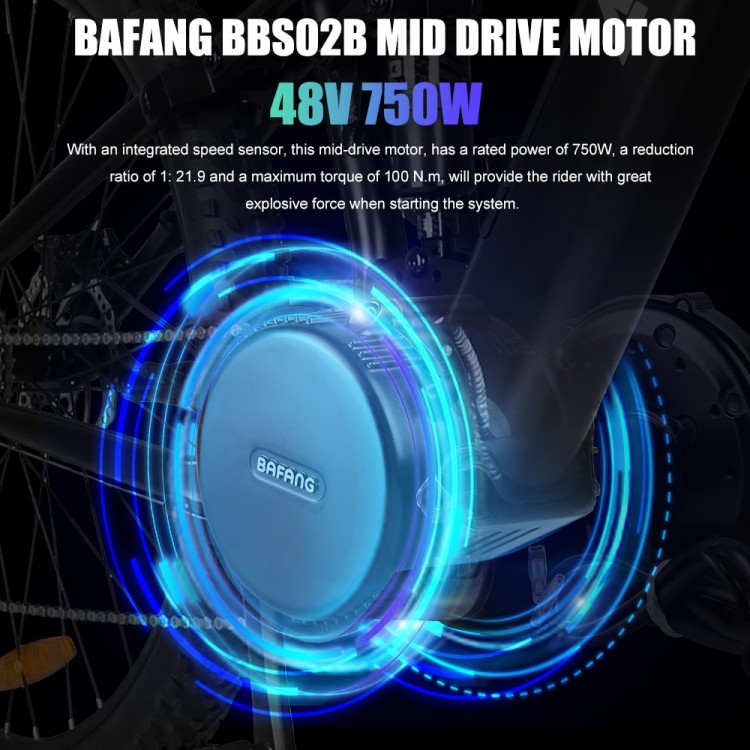

48V 750W Bafang Mid Drive Motor
Recommendation:
Feature:
✅ [Popular] 48V 750 w is the most popular and cost-effective bafang BBS series mid-drive motor.
✅ [Powerful] speeds up to 55 km/h.
✅ [Upgraded]Upgraded IRFB3077 mosfets controller.

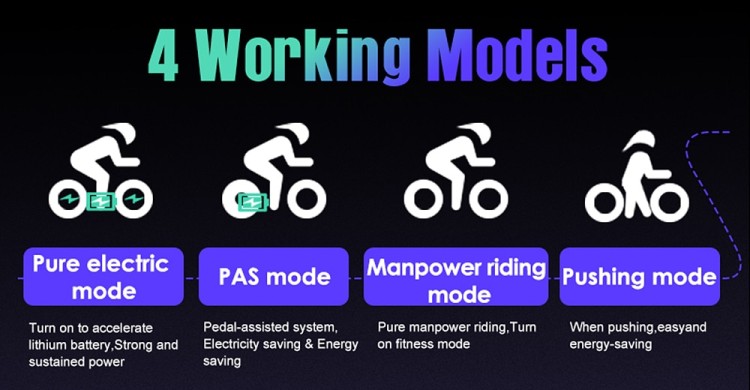

✅ [Four riding modes]pure electric mode and human riding model, power assist and push model. Four operating modes can be switched at will.
✅ [Easy Installation]With only a few tools to remove the crankset and center shaft, but also a tool for installing this mid-drive motor, it can be successfully installed on the electric bicycle only a few times.

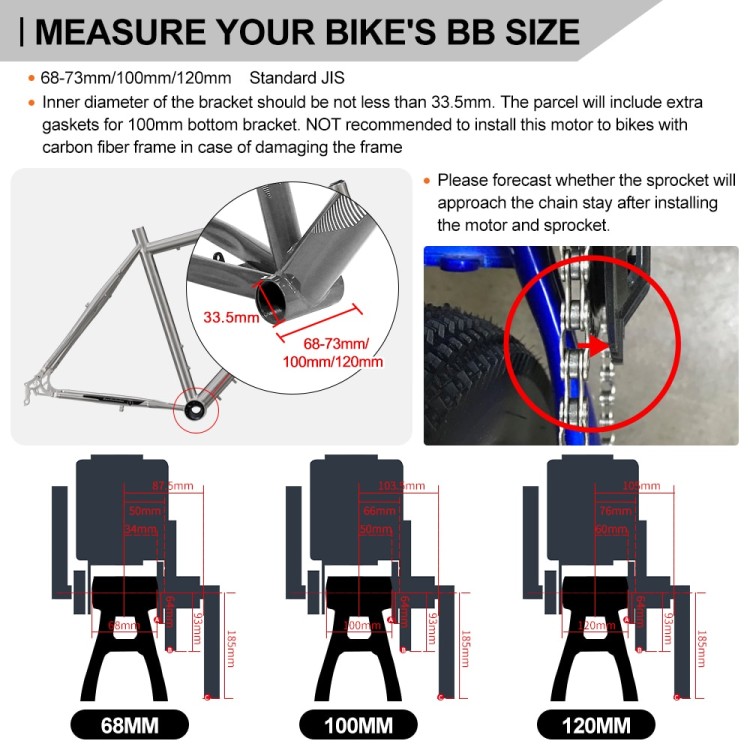

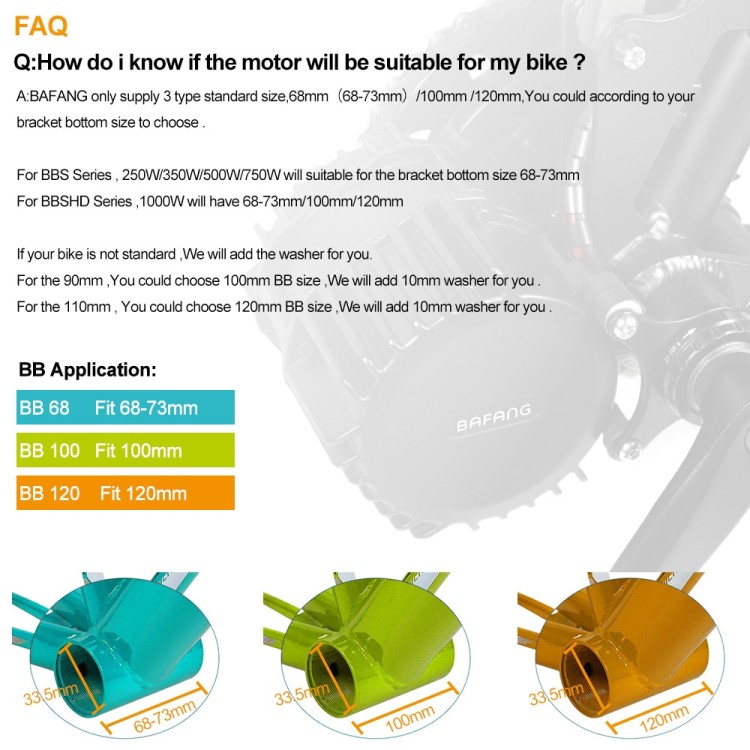

✅ [Universal Compatible]It is compatible with mountain bike, road bike, racing bike ect bike with 68-73mm bottom bracket.

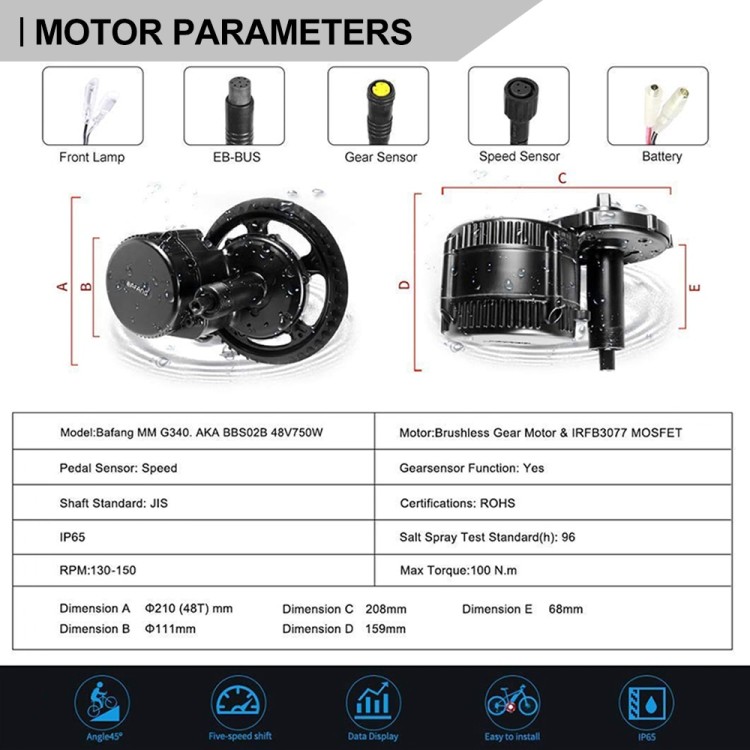

Motor Specifications:
Bafang Model: G340.750
Power: 750W
Voltage: 48V
Controller current: 25A
No-load speed(RPM):140-160
Load Speed (RPM):120-135
torque: 100 N.m
Max speed: 50-55km/h
Efficiency: > 85%
PAS sensor: Speed sensor
Reduction ratio: 1:21.9
Certification: CE/EN 14764/ROHS
Waterproof grade: IP65
Sequential motor weight: 4.24kg
Motor kit weight: 5.6-6.0kg
Bracket bottom length: 68 mm
Motor working temperature:-20°C-45°C
Note: The battery charger is 2A-4A. EU 4A, 2A for US RU UK AU

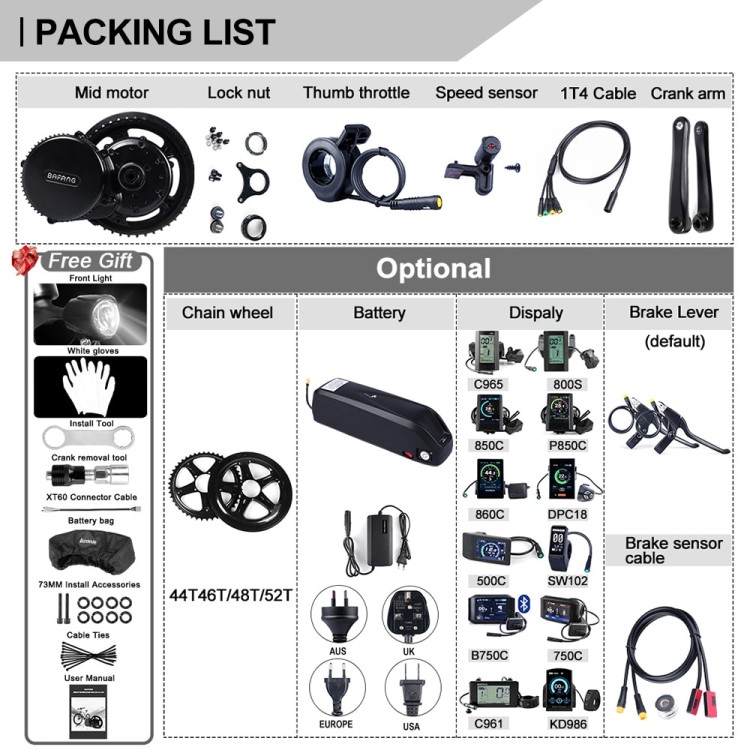

Packing Included:
Controller built-in 1*48V 750W mid-drive motor

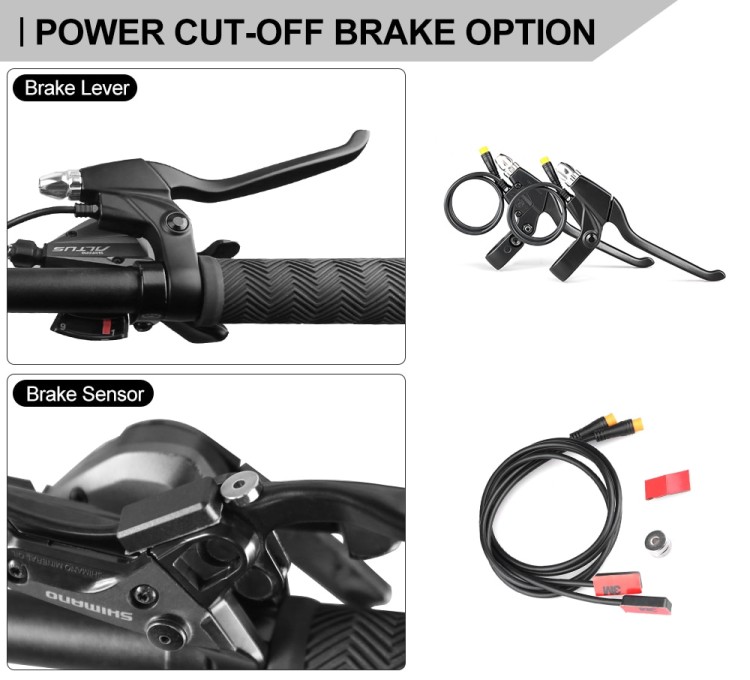

1 pair * brake lever (default) or brake sensor
1 Pair * Crank

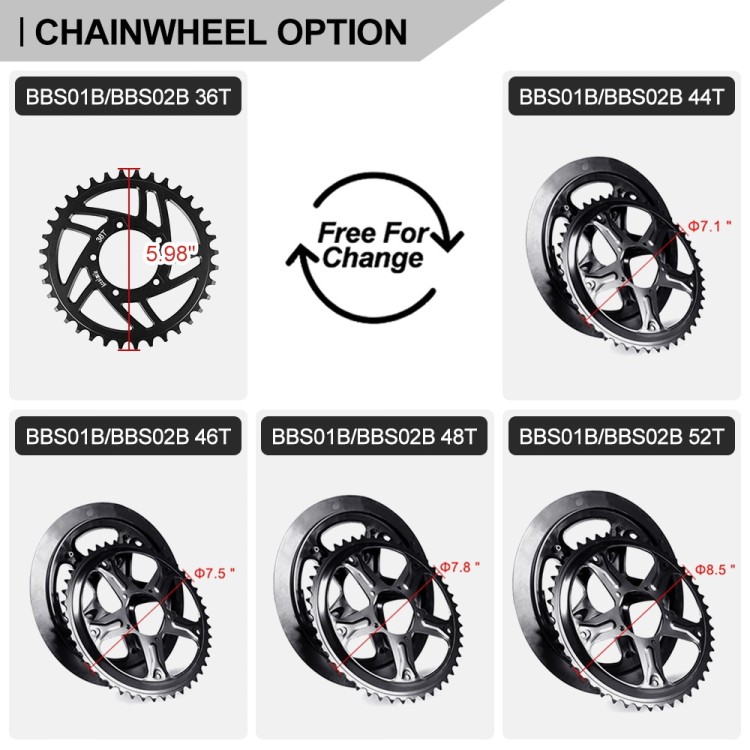

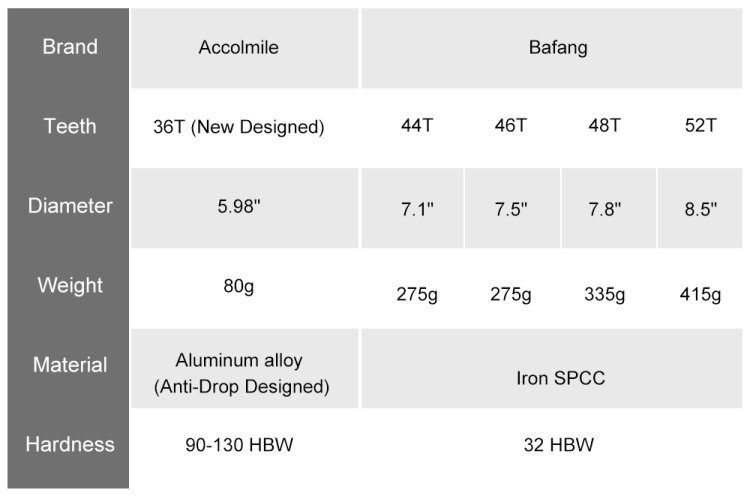

1 pair * chain wheel (44T default, 36T/46T/48T/52T optional, if you need to change the chain wheel for free, please kindly leave a message)
1 set* Thumb throttle
1 set* Speed sensor

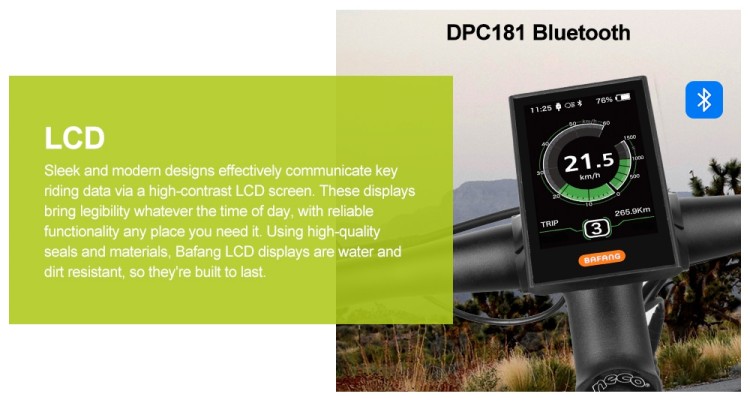

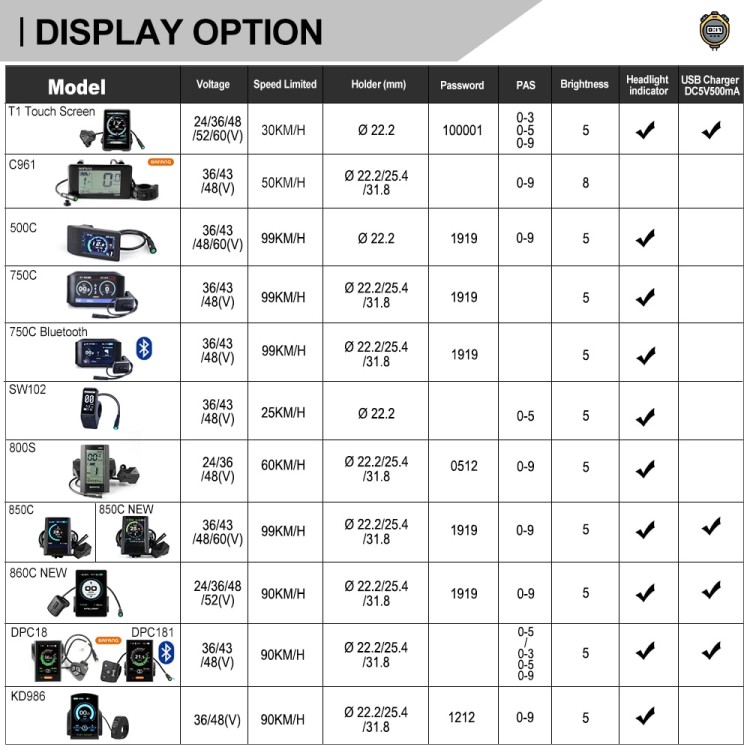

1*(750C Bluetooth, DPC181 Bluetooth, Bafang DPC18 ,KD986, P860C, 850C new, 850C, 750C, SW102, 500C, 800S, Bafang C961 optional)
1*4 1 cable
1 * Accessories

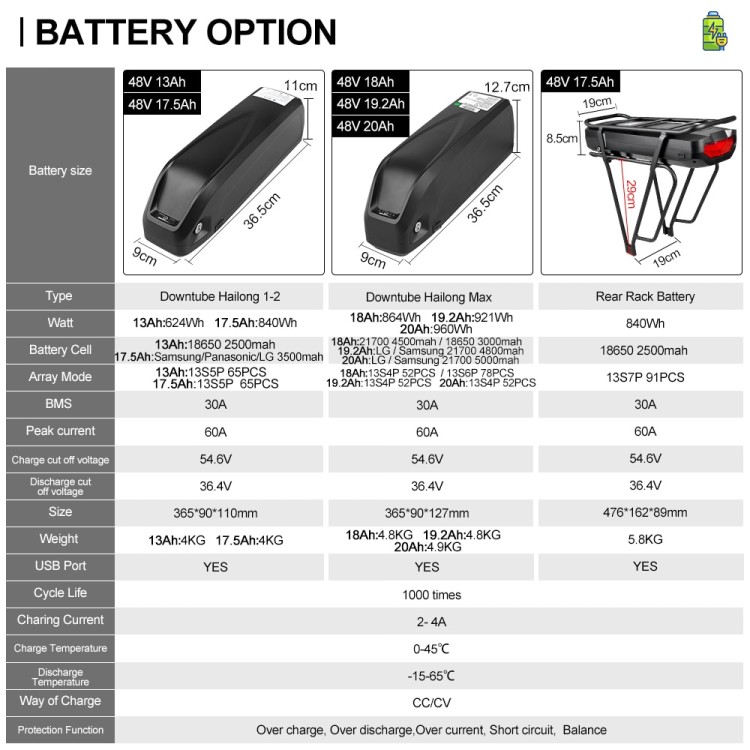

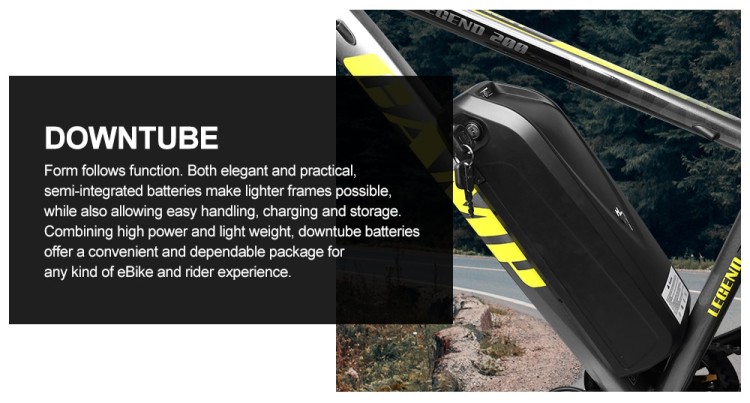

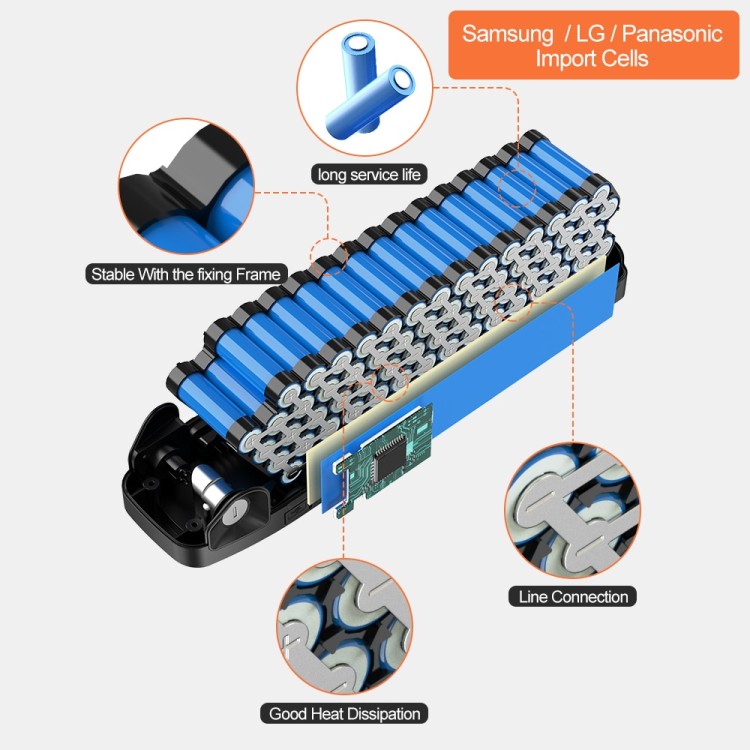

1 * Battery Kit (Optional)
1 * Battery Charger (EU/US/UK/AU optional)
Warm Tips:
1, Due to the particularity of the battery, some motors and batteries are not in the same warehouse, so you can receive more than one package. If there are no products in the package you received, do not first open a dispute or bad review. Please contact us for confirmation.
2. When using the motor kit, make sure the battery key is locked. Otherwise, the discharge port will be easily baked.
Greenergy overseas service:
We have overseas warehouses in USA, Canada, Poland, Germany, Spain, UK, France, Russia, Austria and so on. Orders will be arranged according to your address, the most expensive payment location. We will try our best to ship them to 48 countries.
Guarantee:
For bike frame, the warranty time is 12 months, except phycial damage from wrong order.
For motors, the warranty time is 12 months, except phycial damage if wrong order.
For battery, the warranty time is 12 months, except phycial damage if wrong.
Accessories within 30 days, except phycial damage is wrong.
Payment:
Payment is not included by remote service. There will be an extra cost to your address belongs to the remote service.
Returns & Refunds:
It is our pleasure to see our customers have fun. If you decide to send the goods within 7 days after receipt, refund, return items without original situation.
We have overseas warehouses in USA, Canada, Poland, Germany, Spain, Russia, Austria, and so on. All goods can be easily returned to overseas warehouse.
Feedback:
Your satisfaction and positive is very important, very kind if you leave 5 stars feedback, if you have any problems, please don't hesitate to tocontact, we will try to provide you.
